CEMAR LASERS
WORLD LEADER & INNOVATOR IN LASER TECHNOLOGY

MAXX-600 SERIES

The Maxx-600 series is our manual patient positioning system and it is based on the original CL-606 series but takes advantage of a new streamlined and economic design along with the latest laser technology to offer a simple but robust laser with minimal maintenance. MAXX-600 series includes MAXX-606 crosshair laser and MAXX-607 sagittal laser.
Easy to install, the Maxx-606 and Maxx-607 embody the essence of our “The Art Of Simplicity” motto. The Maxx-60 series is the choice where there are budget concerns and will provide years of trouble free operation.

Laser Specifications :

  • 4 Axis movement:

    • X axis – Horizontal movement: 20mm (0.8”) +/-10mm (from ISO center)

    • Y axis – Vertical movement: 20mm (0.8”) +/-10mm (from ISO center)

    • Roll axis – Horizontal rotation: 10º +/-5º

    • Pitch axis – Vertical rotation: 6º +/-3º

  • Crosshair beam rotation: 15º +/-7.5º

  • Focus Adjustment: from 0.5m-6m (2’-20’)

  • Crosshair beam fan-out: 60º in both axis

  • Available colors: red and green

  • Laser Power Adjustment: 0.1mW-5mW

  • Maximum line width @ 5m (16’): <1.0mm (0.04”)

  • Operating Temperature: 5°-28°C (40°-85°F)

  • Power requirements: 110-240 VAC, 0.8A, 50-60Hz

  • Dimensions:

    • Length 210mm (8.2”)

    • Width 118mm (4.6”)

    • Height 100mm (3.9”)

  • Weight: 1.8 kg (3.9 lbs)

Screen Shot 2021-11-19 at 09.10.05.png
MAXX-700 SERIES

The Maxx-700 Series offers the most technologically advanced patient positioning system on the market. The state of the art design combines function with easy installation, operation and maintenance. Available in red, green and blue in both sagittal and crosshair. Operated via Zigbee protocol the remote control will not conflict with hospital wireless systems and offers a universal symbol based control system which reduces training time. Daily verification is a simple one step process saving valuable time, increasing treatment capability as all Maxx-700’s are equipped with an automatic alignment verification system.

  • Alignment verification sensor

  • Auto ambient light adjustment

  • 4 Axis movement

  • X axis – Horizontal movement: 20mm (0.8”) +/-10mm (from ISO center)

  • Y axis – Vertical movement: 20mm (0.8”) +/-10mm (from ISO center)

  • Roll axis – Horizontal rotation: 10º +/-5º

  • Pitch axis – Vertical rotation: 6º +/-3º

  • Precision motor drives

  • Micro and macro adjustment

  • Available in Green, Red, and Blue

Screen Shot 2021-11-19 at 09.13.19.png

TECHNICAL SPECIFICATIONS

  • 4 Axis movement:

    • X axis – Horizontal movement: 20mm (0.8”) +/-10mm (from ISO center)

    • Y axis – Vertical movement: 20mm (0.8”) +/-10mm (from ISO center)

    • Roll axis – Horizontal rotation: 10º +/-5º

    • Pitch axis – Vertical rotation: 6º +/-3º

  • Movement and position sensing detection for opposed lasers

  • Crosshair beam rotation: 15º +/-7.5º

  • Focus Adjustment: from 0.5m-6m (2’-20’)

  • Crosshair beam fan-out: 60º in both axis

  • All displacements are precision motor driven.

  • Laser Power Adjustment: 0.1mW-5mW

  • Maximum line width @ 5m (16’):

  • Remote can control up to 7 lasers per room

  • Operating Temperature: 5°-28°C (40°-85°F)

  • Power requirements: 100-240 VAC, 0.25A, 50-60Hz

Screen Shot 2021-11-19 at 09.13.33.png

Dimensions:

  • Length 210mm (8.3”)

  • Width 116mm (4.5”)

  • Height 94mm (3.7”)

  • Weight: 2.9 kg (6.4 lbs)

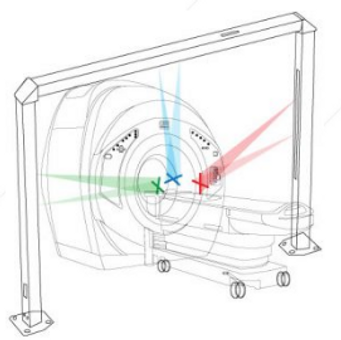

MAXX-1100 CT ROOM LASER

​​Cemar’s CT Room Laser system, the Maxx-1100 delivers the most precise movement available. Also available in all 3 colors and in both single free standing units or as a complete set enclosed within a gantry system. The control interface is Dicom based and compatible with all major CTs. Colors are interchangeable and our modular laser diodes are user serviceable without removing the unit, a feature available in all Maxx products. All colors are the same price so your requirement is not affected by your budget.

Features

  • Symbol based remote control

  • Wireless communication

  • Ethernet and Zigbee

  • Dicom 3.0 RT

  • Windows based

  • Accuracy +/- 0.2mm

  • Range of travel +/- 300mm


Wavelength

  • RED 635nm

  • GREEN 520nm

  • BLUE 450nm

Screen Shot 2021-11-19 at 12.30.05.png
